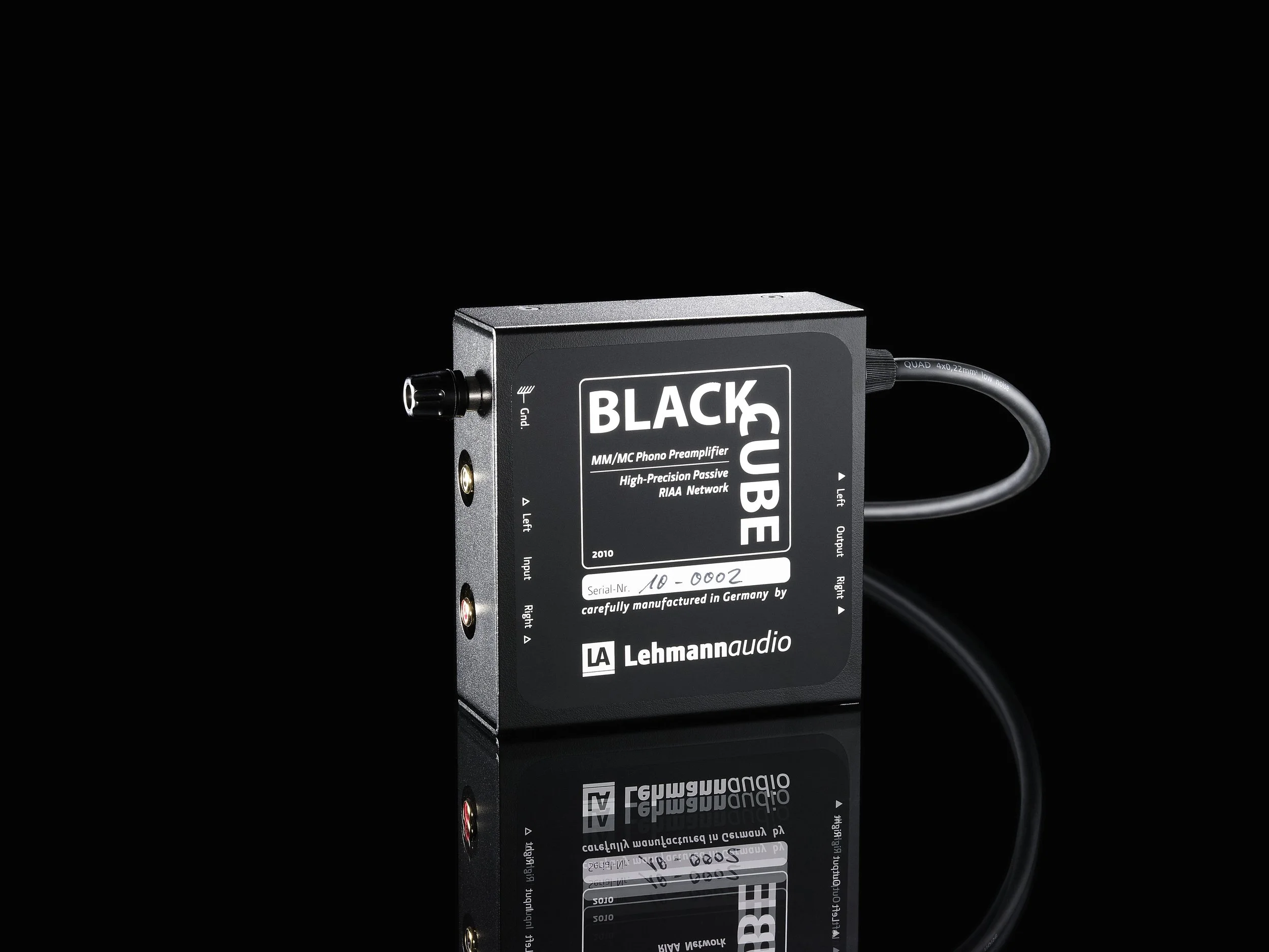

Black Cube

£525.00

The Black Cube is the classic among the phono preamps: since its product launch in 1995 it has enjoyed cult status with a vast number of record lovers, causing a sensation in the specialised press with its compact dimensions and marvellous sound. Since 2006 the audio pc board has been on the market in a new and greatly improved version.

Can you still remember what it was like to put on your favourite LP for the first time? Which detail cast a spell over you and even today is still fascinating?

The Black Cube enables a new encounter with beloved music classics: owing to its excellent components and sophisticated circuit design, the sound is faithfully reproduced and with plenty of ardour, despite its tiny dimensions.

Can you still remember what it was like to put on your favourite LP for the first time? Which detail cast a spell over you and even today is still fascinating?

Sensitivity for output level 775 mV/ 0 dB (with activated high gain jumper)

Gain 1 kHz

Maximum input level 1 kHz

Signal to noise ratio (RMS unweighted)MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz

MM: 46 dB; MC: 66 dB

MM: 45 mV; MC: 4,5 mV

MM: 71 dB; MC: 63 dB


Gain: 36 dB, 46 dB, 56 dB, 66 dB

Channel separation> 85 dB at 10 kHz

Input impedance 47 kohms, 1 kohm, 100 ohms
1 x custom load
1 x hardwire slot

Output impedance: 47 ohms

Input capacitance: 100 pF

Channel mismatch typ.: 0.5 dB

Bass filter: 50 Hz, 6 dB/oct.

Power consumption: < 3W

Outer dimensions W x D x H

Audio section: 113 mm x 108 mm x 45 mm
Power supply: 70 mm x 115 mm x 55 mm

Weight incl. cable to power supply: 0.4 kg netto
Power supply: 0.3 kg netto
